| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | HE |
| 인증: | CE/CCC/FCC/ROHS/ISO9001 |
| 모델 번호: | 키오스크-K36W |
| 최소 주문 수량: | 1개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 포장 또는 고객의 요청에 따라 |
| 배달 시간: | 15-20일 |
| 지불 조건: | L/C, D/P, T/T, 웨스턴 유니온 |
| 공급 능력: | 달 당 1000개 조각 |
| 강력한 성능: | AIoT-3568A(4+32), Android 11, 쿼드 코어 Cortex-A55 최대 2.0GHz | 높은 보안: | EMV 및 PCI 준수, 안면 인식 카메라, 스키밍 방지 기능 |
|---|---|---|---|
| 표시하다: | 10.1 TFT 컬러 LCD 터치 스크린, 프라이버시 필터(옵션), 햇빛에서도 판독 가능 | 모듈형 디자인: | 옵션 모듈로 사용자 정의 가능 |

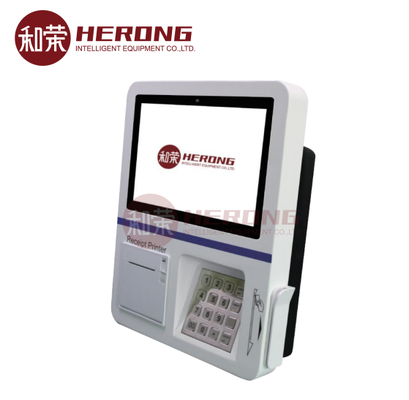

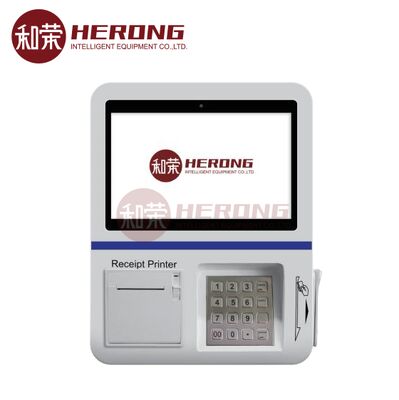

KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking
Advantages:
| Dimensions | Width | 285mm |
| Height | 360mm | |
| Thickness | 88mm | |
| Net Weight | 30kg | |
| Backing plate and carton packaging weight | 35kg | |
| Backing plate and wood packaging weight | 40kg |
Summary:
| Software | Compliant with CEN/XFS standard, support different protocols like: NDC, DDC, ISO8583, etc. | |
| Security | Lock | Key Lock |
| Camera | Binocular Camera (opt.), Facial Camera | |
| Sensor | Door Sensor, Infrared Sensor (opt.),Smoke Sensor (opt.), Light Sensor (opt.) | |
| Others | Explosion-proof Glass, DVR (opt.) | |
| Industrial Control Host | AIoT-3568A (4+32), Android 11, Quad-core 64-bit Cortex-A55 Maximum main frequency 2.0GHz | |
| GPU ARM G52 2EE, supporting OpenGL ES 1.1/2.0/3.2 | ||
| GPU ARM G52 2EE, supporting OpenGL ES 1.1/2.0/3.2 | ||
| Vu1kan 1.1, supporting 4K 60fps H.265/H.264/VP9 video decoding | ||
| Cash Processing Unit | Cash Bag | 1 Unit |
| Capacity | Capacity ≥15,000 banknotes, up to 200 banknotes per transaction, Speed ≥ 700PPM, Support continuous deposit | |
| OCR | Support Banknote Serial Number Recognition | |
| Customer Interface | Display | 10.1” TFT Color LCD Touch Screen, Privacy Filter(opt.), Sunlight Readable |
| EPP | PCI compliant, 4x4 metal EPP, 2x4 function keys, dust/water/vandal resistant, support customizable layout and braille key | |
|
Card Reader
|
EMV Swipe Card Reader, Contactless Card Reader(opt.)
|
|
|
Card Security
|
Anti-skimming
|
|
| Receipt Printer | Graphic Thermal Receipt Printer,E-journal | |
| Light | Device Guidance Light, Status Indicator Light, LED Electronic Screen Light (opt.), Logo Light (opt.) | |
| Others | Bar Code Reader, Fingerprint Reader (opt.),Speaker, Audio Jack | |
| Environment | Work Environment | Temperature:-10℃~+65℃(+14℉~+149℉)(Indoor),-35℃~+75℃,(-31℉~+167℉)(Outdoor with heater) Humidity: 20%~85%(No condensation) |
| Storage Environment | Temperature: -20℃~+85℃(-4℉~+185℉) Humidity: 5%~90%(No condensation) |
|
| Additional Module | SIU Control Board, Fan, Heater (opt.) |
Company Introduction:
Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.
We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.
By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.
